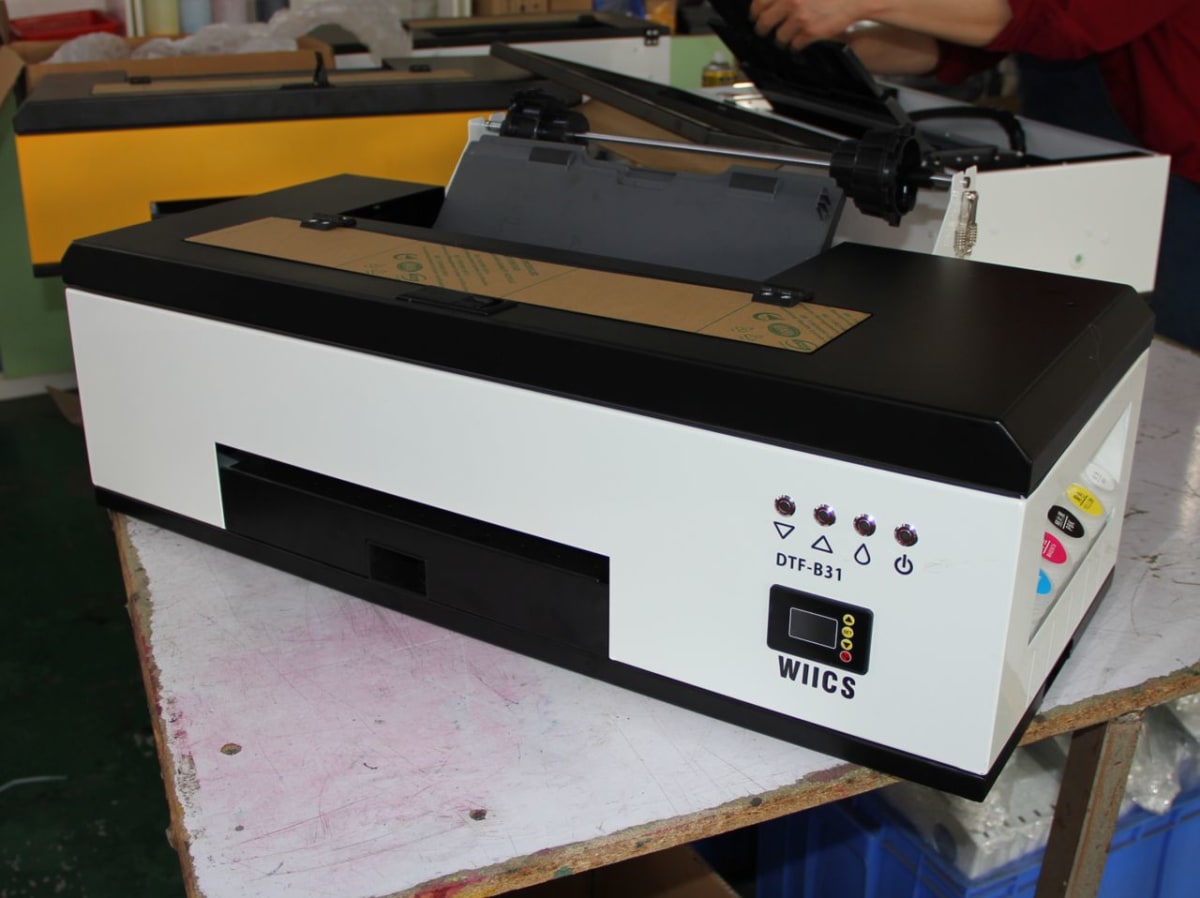

1390 A3 DTF Printer +Oven

Product Description

The 1390 A3 DTF printer is a direct-to-film printer designed for printing on various textiles, using a special film and heat transfer process. Key specifications include an A3 print width (300mm/11.8in), 6 color channels (CMYK+WW), and a maximum resolution of 2880x2880 DPI (though 1440x720 DPI is recommended). It typically prints an A3 page in 5-8 minutes.
Detailed Specifications:
Model: R1390 DTF (Direct-to-film printer)
Print Width: 300mm / 11.8 inches
Channels: 6 (CMYK+WW)
Motherboard: R1390
Printing Speed: A3/5-8 minutes
Maximum Resolution: 2880 x 2880 DPI (Recommended: 1440 x 720 DPI)
Ink Consumption: 10ml/㎡ (0.93 ml/ft²)
Nozzle Holes: 90 per channel
Number of Nozzles: 1
Operating System: Windows
Voltage: 110V/220V
Operating Temperature: 15℃-30℃/59°F-86°F
Working Humidity: 40%-60%
Weight: 38Kg/84lbs
Dimensions: 800×330×240mm/31.5×13.0×9.4 in
Package Size: 890×420×380mm/35.0×16.5×15.0 in
White Ink Management: Supports white ink circulation, stirring, and filtration with adjustable speed
Other Features: Air suction platform (adjustable speed), waste ink collection, nozzle self-cleaning and moisturizing, visible ink monitor, and inspection door.
Additional Information:
DTF (Direct-to-Film):
This printing process involves printing a design onto a special film and then transferring it to the fabric using a heat press.
Suitable for Medium-Scale:
The 1390 DTF printer is often recommended for medium-scale businesses or startups, capable of producing 50-100 pieces per day.
File Formats:
Common file formats for DTF designs include JPG, PNG, and TIFF.
Resolution:
A resolution of 300 DPI or higher is generally recommended for DTF printing to ensure clear, detailed prints.
Software:
The printer typically works with RIP (Raster Image Processor) software for image processing and print control.
